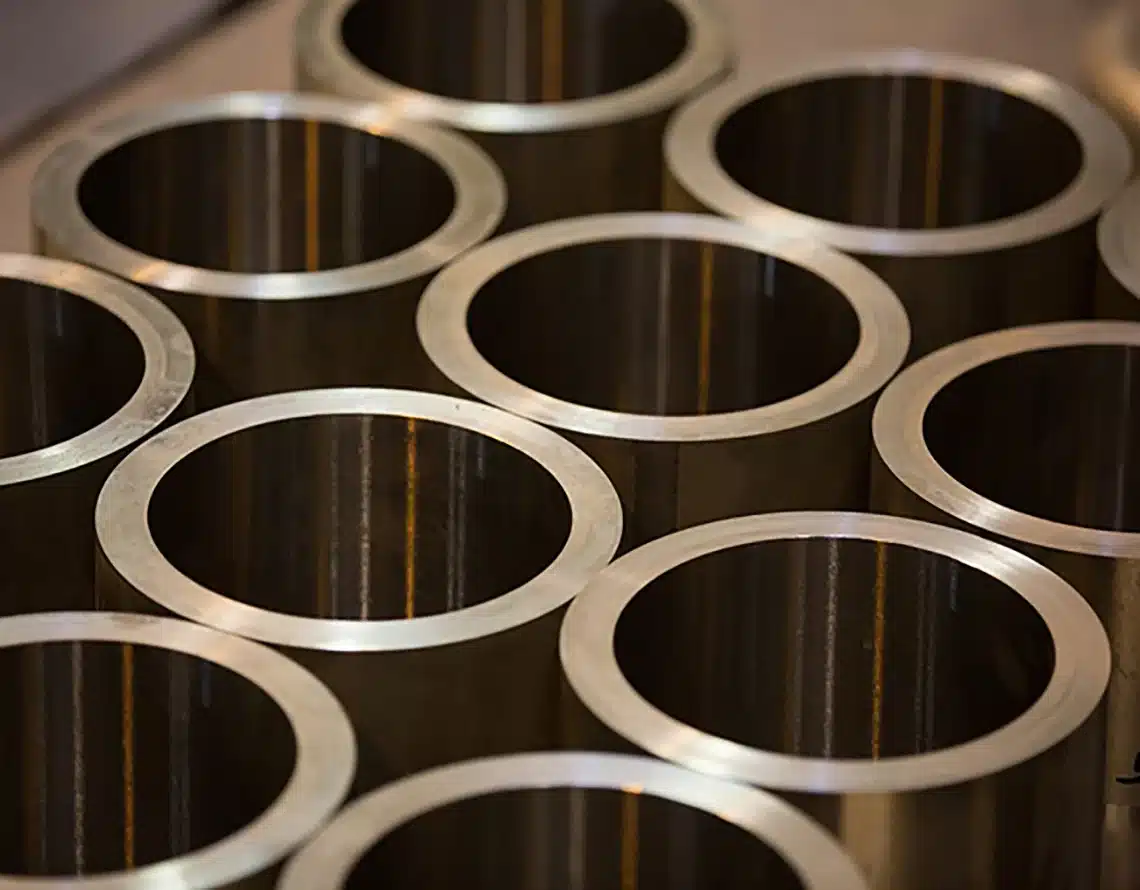

Daxun is an experienced manufacturer of CP-2 grade titanium tubes
As a leading supplier of titanium and titanium alloy tubes in China, Daxun provides high-performance titanium tubes to the world.
- Titanium pipe/tube Grade:CP-2(Grade 2)- UNS R50400-3.7035
- Titanium tube types: Seamless Ti tube, Ti welded tube, forged Ti tube
- Titanium tubes density The density of grade 2 titanium is 4.51 g/cm3
- Standards: ASTM B861、B862、B338 / ASME SB861、SB862、SB338
- High strength, very corrosion resistant, good cold formability
————Daxun produces titanium tubes in China to meet the diverse and ——demanding needs of customers!
A global leader in commercially pure titanium tubes fabrication services
Buy Grade 2 Titanium Tubes from Daxun; we can offer you a wide range of sizes, starting from 1.0 mm diameter, in a wide variety, either directly from stock or custom made to your specifications. We can immediately provide drawn, seamless rolled or longitudinally welded tubes for a variety of applications from stock. We sell welded or seamless tubes made of Grade 2 Titanium to typical specifications for heat exchangers such as ASTM B 338, ASME SB 338, DIN and VD TÜV.
Our CP Grade 2 tubes have a density of 4.51 g/cm3, which is 45% lower than ferrous alloys. It is a medium-strength alloy with a typical yield strength of 352 MPa. The alloy has good ductility, formability and welding properties. The addition of iron and oxygen improves strength and formability. CP Grade 2 exhibits similar performance qualities to Grade 1, including excellent corrosion resistance under oxidizing conditions. However, this titanium tube is stronger than Grade 1 titanium tube.
Grade 2 Titanium Tubes are commercially pure titanium with a good balance between strength and ductility. The material has good toughness. It is the most commonly used titanium alloy due to its high strength, weldability and corrosion resistance. Its high ductility and formability make it the alloy of choice for piping systems, heat exchangers, reaction and pressure vessels, and flue gas desulfurization systems. Grade 2 titanium alloys are used in a variety of industries, including chemical processing, petrochemical processing, aerospace and marine.
Are you looking to purchase titanium tubes for your project or order a range of tubes? Daxun produces a wide range of titanium tubes including Grade 1 (3.7025), Grade 2 (3.7035), Grade 3 (3.7055), Grade 7 (3.7235), Grade 9 (3.7195) and Grade 12 (3.7105).
Buy titanium tubes at Daxun Alloys.
We offer a wide range of sizes starting from 1.0 mm in diameter with multiple variations, available directly from stock or custom made to your specifications through our network. We have wrought titanium tubes, seamless titanium tubes and longitudinally welded titanium tubes immediately available from stock for a wide range of applications.
We offer heat exchanger tubing in standard specifications such as ASTM B 338, ASME SB 338, DIN 17866 and VD TÜV welded titanium tubes or seamless titanium tubes. When it comes to titanium tubes, we have a large supply of titanium welded tubes and titanium seamless tubes in China in standard sizes up to 100 mm thick. We will supply welded titanium tubes for larger pipe sizes. The most common specifications used in the industry are ASTM B 861, ASFM B 862, NACE and NORSOK and VD TÜV Tube 230/2, depending on the specifications of the plant designer.
Titanium tube surface treatment options include bright annealing, pickling and grinding. Material parameters vary depending on the application and product requirements. The corrosion and mechanical properties of titanium alloy tubes vary. We are happy to assist you in evaluating your needs. If you have a long-term supply commitment, you can establish a framework agreement with Daxun. We guarantee price and quantity for a specified period.
Data
- Parameter
- Ingredient
- Mechanical Properties
| Grade 2 Titanium pipe & Tubes Specification | ASTM B338 / ASTM B861 / ASTM B862 / ASME SB338 / ASME SB861 / ASME SB862 |
| Grade 2 Titanium pipe & Tubes Grades | Commercially pure titanium Grade 2- TA2- USN 50400 |
| Grade 2 Titanium pipe & Tubes Type | ot Rolled / Cold Drawn / Welded / ERW |
| Grade 2 Titanium pipe & Tubes Outer Diameter Size | Titanium seamless pipe – φ1.0mm to φ508.3mm |
| Titanium welded pipe – φ1.0mm to φ1219mm | |
| Grade 2 Titanium pipe & Tubes Wall Thickness | 1.0mm—50mm (customizable wall thickness) |
| Grade 2 Titanium pipe & Tubes Length | 5 to 7 Meters, 09 to 13 Meters, Single Random Length, Double Random Length And Customize Size. |
| Titanium pipe Form TA2 | ‘ Hollow, U’ bent, LSAW, Hydraulic, Straight Tube, Boiler, Round, Tube Coil, Square, Rectangular Etc |
| Marking TA2 3.7035 | All Titanium Tubes Tubing are marked as follows: Grade, Standard, Thickness, OD, Heat No., Length (Or according to the customer’s request.) |
| Uses of Titanium Alloy Tubes | Gas pipes, oil pipes, heat exchanger tubes, boiler tubes, fluid pipes, titanium exhaust pipes. |
| Grade 2 Titanium pipe & Tubes Pipe Ends | Plain Ends / Beveled Ends |
| Grade 2 Titanium pipe & Tubes Delivery Conditions | As Rolled, Cold Drawn, Hot Finish, Stress Relieved, Annealed, Hardened, Tempered |
| Grade 2 Titanium pipe & Tubes Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Grade 2 Titanium pipe & Tubes Other Testing | ardness Test, Hydrostatic Test, Eddy Current test, Eddy Current, Tensile Test, Flattening, Flare Test, Annealed, Hydrostatic Test, Tempered, Stress Relieved etc. |
| Grade 2 Titanium pipe & Tubes Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM And ASME |
| Grade 2 Titanium pipe & Tubes Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| Grade 2 Titanium pipe & Tubes Packaging | Loose / Bundle / Wooden Pallet / Wooden box-a / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Grade 2 Titanium pipe & Tubes Shipment & Transportation | By Road – Truck / Train, By Sea – Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air – Freighter Civil Passenger and Cargo Planes |
| Grade 2 Titanium pipe & Tubes Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| Element | Weight % |
| C | ≤0.08 |
| O | ≤0.25 |
| N | ≤0.03 |
| H | ≤0.015 |
| Fe | ≤0.30 |
| *OEE | ≤0.10 |
| *OET | ≤0.40 |
| Ti | Remaining |
| Alloy | UNS Designation | Spec. | Tensile Strength (min.) | Yield Strength 0.2% Offset (min.) | Elongation in 2 inches (min.) | Grain Size Requirement | Max Hardness | Modulus of Elasticity (x106 psi) | Mean Coefficient of Thermal Expansion IN./IN./°F x 10-6) | Thermal Conductivity (BTU-in/ft2-h-°F) | ||||
| psi | MPa | ksi | psi | MPa | ksi | % | ||||||||
| Grade 2 Titanium | R50400 | B338 | 50,000 | -345 | 50 | 40,000- | (276-448) | 40-65 | 20 | — | — | 16 | 5.1 | 144 |
| 50,000 | ||||||||||||||
Choose Daxun to help your project take off.

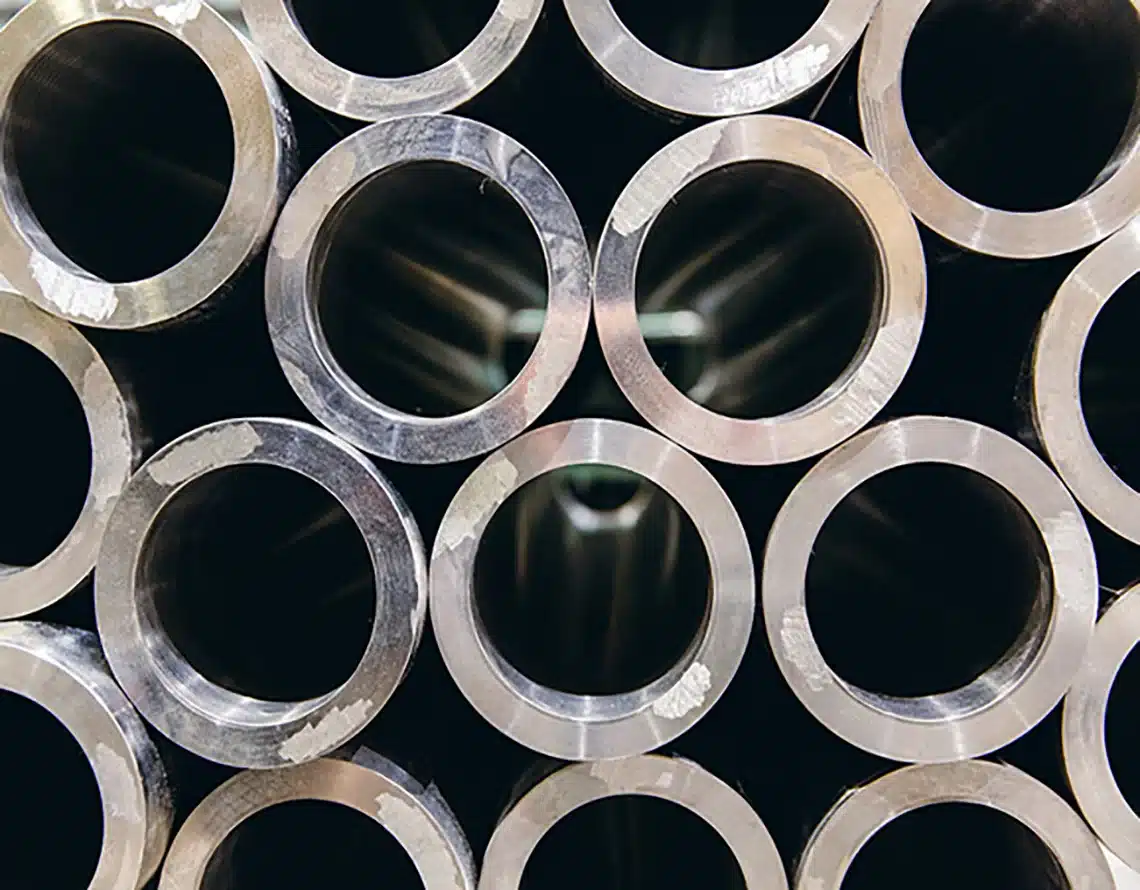

Advanced Production:Titanium seamless pipe
- Grade 2 titanium seamless pipes are hot rolled or hot extruded, straightened, processed with inner and outer diameters, and surface etched. The pipes can be supplied in heat-treated or non-heat-treated forms. Daxun has 100% ultrasonic flaw detection capabilities. Hot rolled pipe/hot extruded titanium seamless pipe: outer diameter 1.0mm to 325mm, wall thickness 0.3mm to 50mm, length up to 12000mm. Cold rolled titanium seamless pipe: cold processed pipes are supplied after heat treatment, surface etching, water pressure test or ultrasonic flaw detection according to manufacturing specifications. Outer diameter 6mm to 102mm, wall thickness 0.5mm to 20mm, length up to 9000mm.
(The above is agreed upon by the manufacturer and the customer based on the specific situation)
Grade 2 Titanium Tube Features
Daxun’s Grade 2 Titanium Tube has medium strength and excellent cold forming properties. It has excellent welding properties and has excellent resistance to oxidation and corrosion.
- High Strength Titanium Alloy
- Excellent Cold Formability
- Excellent Weldability
- Excellent High Oxidation Resistance
- We stock and sell this grade of Grade 2 Titanium Tube, Titanium Welded Tube, Titanium Seamless Tube, Pipe Fittings, Forged Seamless Tube.


Advanced Production: Titanium Welded Tube
Grade 2 Titanium Welded Tube: Diameter ranges from 6.0mm to 1219mm, wall thickness ranges from 0.3mm to 30mm (depending on diameter), lengths up to 25000mm, made from Gr1 titanium tube. Welded tubes are made from flat rolled billets (tube blanks) on electric tube welding machines using automatic tungsten inert gas (argon) welding, and heat treated on the mill line. Mechanical tests, geometric measurements, 100% ultrasonic and eddy current testing, pneumatic or hydrostatic testing are performed before the finished titanium welded tubes are packaged according to customer specifications. Manufacturing technology as well as inspection and testing equipment ensure that thin wall welded tubes meet ASTM B 338 and ASME SB 338 specifications.
Test Reports
The test reports we provide include: Factory test certificate for Grade 2 Titanium Welded Pipe and Grade 2 Titanium Seamless Pipe, EN 10204 3.1, Chemical Report, Mechanical Report, PMI Test Report, Visual Inspection Report, Third Party Inspection Report, NABL approved laboratory report, Destructive Test Report, Non-destructive Testing Report. (DaXun will provide according to customer requirements)


Applications and standards
Grade 2 titanium tubes are widely used in the following industries under extreme corrosive conditions:
- Chemical processing parts such as heat exchangers, reaction vessels, evaporators and transmission pipelines, automobile exhaust, oil and gas industry, petrochemical plants, chemical plants, industrial machinery, power industry, paper and pulp industry, food processing industry, refineries, pharmaceutical and food processing equipment, etc.
- Specifications: ASTM B861, B862, B338 / ASME SB861, SB862, SB338
- Standards: ASTM, ASME, GB, GJB, API
Quality, delivery, inspection
Daxun performs several quality assurance tests, these tests include flattening test, flaring test, ultrasonic flaw detection test, pitting and resistance test, mechanical test, hardness test, material positive identification, expansion test, etc. All these tests ensure that the Grade 2 Titanium Welded Tube and Grade 2 Titanium Seamless Tube materials are suitable for the required application. During the production process, we measure the diameter, thickness and surface of the products. Our standard delivery time is 5-7 days and the delivery time for special size products is 15-20 days.
- Our delivery time is strictly in accordance with the contract.
- Support customer third-party agencies to go to the factory for inspection
- Support free samples for customer testing
- Support on-site or video factory inspection


Packaging
Daxun Alloy ensures the best quality of packaging as it plays an important role in international freight where goods go through various channels to reach the final destination, so we pay special attention to packaging. We pack our goods in many ways depending on the product. We pack our products in many ways such as:
• Boxes and crates
• Shrink wrap
• Wooden pallets
• Wooden boxes
Technical Support
If you need any additional technical assistance, our resident metallurgist and knowledgeable staff will be pleased to help. Additionally, Daxun boasts a certified testing laboratory—a first in the multi-metal and plastic inventory industry. This, in our opinion, demonstrates our unwavering dedication to quality and our philosophy as a full-service supplier.

Grade 2Titanium TUBE Features
Daxun Grade 2 Titanium TUBE Let your brand improve rapidly
- Gallery
- Titanium pipe/tube
- Surface
- Types of
| Apart from the products listed below, other available metal products are not listed here. Other metal products DAXUN can manufacture and supply include Tantalum, Niobium, Zirconium, Hafnium, Nickel, Copper etc., which are mainly in the form of Plate, Bar and Tube. | |
| Products/Processing Standard | Grade/Size |
| Titanium Plate, Sheet, Coil— ASME SB265, AMS 4911, AMS 4919, AMS 4914,ASTM F67, ASTM F136 | GR1, GR2, GR3, GR4, GR5, GR7,GR9, GR12, GR16, GR17, GR23,Ti-6Al-4V ELI, Ti-6-2-4-2, Ti-15-3-3-3(Thickness:( 0.0197”-6”)Max Width: 12 feet,Max Length: 50 feet) |
| AMS-T-9046 | |
| Titanium and Titanium alloy pipe/tube | |
| Commercially pure titanium (CP) | |
| Code designation | Yield strength |
| minimum, ksi 1 / | |
| CP-1 | 70 |
| CP-2 | 55 |
| CP-3 | 40 |
| CP-4 | 25 |
| Alpha titanium alloys(A) | |
| Code designation | Composition |
| A-1 | 5A1-2.5Sn |
| A-2 | 5A1-2.5Sn(ELI) 2 / |
| A-3 | 6A1-2Cb-1Ta-0.8Mo |
| A-4 | 8A1-1Mo-1V |
| Alpha-beta titanium alloys(AB) | |
| Code designation | Composition |
| AB-1 | 6A1-4V |
| AB-2 | 6A1-4V(ELI) |
| AB-3 | 6A1-6V-2Sn |
| AB-4 | 6A1-2Sn-4Zr-2Mo |
| AB-5 | 3A1-2.5V |
| AB-6 | 8Mn |
| Beta titanium alloys(B) | |
| Code designation | Composition |
| B-1 | 13V-11Cr-3A1 |
| B-2 | 11.5Mo-6Zr-4.5Sn |
| B-3 | 3A1-8V-6Cr-4Mo-4Zr |
| B-4 | 8Mo-8V-2Fe-3A1 |
| Processing: | |
| Hot Rolling | Cold Rolling |
| Available Grades: | |
| CP Grade 1 | Grade 6Al-2Sn-4Zr-2Mo (6-2-4-2) |
| CP Grade 2 | Grade 6Al-4V ELI (Formerly Grade 23) |
| Grade 7 | Grade 6Al-6V-2Sn (6-62) |
| Grade 19 | Grade 8Al-1Mo-1V (8-1-1) |
| Grade 5 (6Al-4V) | Grade 9 (3Al-2.5V) |
| Grade 6 (5Al-2.5Sn) | CP Grade 3 |
| Application | |
| Chemical Industry | Desalination Of Sea Water |
| Petrochemical Industry | Aerospace |
| Machining Field, Automobile Field | Mobile Phone Component Field. |
| urface Finish | Internal Surface(ID) | Exterbal Surface(OD) | |||
| Roughness Average(RA) | Roughness Average(RA) | ||||
| μ inch | μm | μ inch | μm | ||
| BA | Beight Annealed | 40,32,25,20 | 1.0,0.8,0.6,0.5 | 32 | 0.8 |
| EP | Electro Polish | 15,10,7,5 | 0.38,0.25,0.20;0.13 | 32 | 0.8 |
| MP | Mechanical Polish | 40,32,25,20 | 1.0,0.8,0.6,0.5 | 32 | 0.8 |
| AP | Annealed & Pickled | Not defined | Not defined | 40 or Not defined | 1.0 or Not defined |
| Titanium Grade 2 Seamless Pipe | Titanium DIN 3.7035 Seamless Pipe |
| Titanium UNS R50400 Seamless Pipe | |
| Titanium Grade 2 Seamless Pipes | |
| Titanium Alloy Gr.2 Seamless Pipe | |
| ASTM B337 Titanium Grade 2 Seamless Pipe | |
| ASME SB337 Ti Alloy Gr.2 Seamless Pipes | |
| Titanium Grade 2 Welded Pipe | Titanium DIN 3.7035 Welded Pipe |
| Titanium UNS R50400 Welded Pipe | |
| Titanium Grade 2 Welded Pipes | |
| Titanium Alloy Gr.2 Welded Pipe | |
| ASTM B337 Titanium Grade 2 Welded Pipes | |
| ASME SB337 Ti Alloy Gr.2 Welded Pipes | |
| Titanium Grade 2 Round Pipe | Titanium DIN 3.7035 Round Pipe |
| Titanium UNS R50400 Round Pipes | |
| Titanium Grade 2 Round Pipes | |
| Titanium Alloy Gr.2 Round Pipe | |
| Titanium Grade 2 Round Pipe | |
| Ti Alloy Gr.2 Round Pipes | |
| Titanium Gr.2 Seamless Tubes | Titanium DIN 3.7035 Seamless Tubes |
| Titanium UNS R50400 Seamless Tubes | |
| Titanium Grade 2 Seamless Tubing | |
| Titanium Alloy Gr.2 Seamless Tubes | |
| ASTM B338 Titanium Gr.2 Seamless Tubing | |
| ASME SB338 Ti Alloy Grade 2 Seamless Tubes | |
| Titanium Grade 2 Welded Tubes | Titanium DIN 3.7035 Welded Tubes |
| Titanium UNS R50400 Welded Tubes | |
| Titanium Grade 2 Welded Tubing | |
| Titanium Alloy Gr.2 Welded Tubes | |
| ASTM B338 Titanium Grade 2 Welded Tubing | |
| ASME SB338 Ti Alloy Gr.2 Welded Tubes | |
| Titanium Grade 2 Round Tubes | Titanium DIN 3.7035 Round Tubes |
| Titanium UNS R50400 Round Tubes | |
| Titanium Grade 2 Round Tubing | |
| Titanium Alloy Gr.2 Round Tubes | |
| Titanium Grade 2 Round Tubing | |
| Ti Alloy Gr.2 Round Tubes | |
| Titanium Grade 2 Pipe | Titanium DIN 3.7035 Pipe |
| Titanium UNS R50400 Pipes | |
| Titanium Grade 2 Pipe | |
| Titanium Alloy Gr.2 Pipes | |
| Titanium Grade 2 Pipes | |
| Ti Alloy Gr.2 Pipe | |
| Titanium Grade 2 Tube | Titanium DIN 3.7035 Tubes |
| Titanium UNS R50400 Tube | |
| Titanium Grade 2 Tubing | |
| Titanium Alloy Gr.2 Tubes | |
| Titanium Grade 2 Tubes | |
| Ti Alloy Gr.2 Tubes |
Grade 2 titanium tube form (4)
Information available for reference and download
Daxun is a trustworthy Titanium pipe/tube manufacturer
As a professional manufacturer, Daxun ensures superior quality across all its products. Consequently, all our titanium tubes have obtained certifications under multiple international quality standards, including ISO9001, SGS, CE, and OQC.
Recent hot case projects and products
Related Products (8)
Grade 2 Titanium Tube (UNS R50400 / Werkstoff WS 3.7035)
This is the most often used titanium tube for industrial applications, providing a superb balance of moderate strength and reasonable ductility. It offers excellent corrosion resistance in both highly oxidising and slightly reducing conditions (including chlorides). It provides good corrosion protection in the chemical and offshore industries, as well as aircraft manufacture, where strength and ease of forming are required. It’s also utilised in heat exchangers, hypochlorite systems, fire water systems, ballast water systems, industrial and aerospace components, CPI equipment, and pipes.
Fabrication
Stock Availability
Weight Reduction
Crystal Structure
Grade 2 Titanium Seamless Pipe Manufacturing Process
Grade 2 Titanium Welded Pipe Manufacturing Process
Power Industry Reference List
| Company | Project |
|---|---|
| Alstom Power | Calpine Fox Energy |
| Alstom Power | Skikda |
| The Atlantic Group | Savannah Electric Power Kraft #2 |
| Constellation Power | Wagner Station Unit #2 |
| Ecolaire/Yuba Heat Transfer | Connectiv Energy |
| Ellet Industries | — |
| Graham Corp | — |
| Hantech | — |
| High Performance Tube | — |
| Joseph Oat | BP Chemical |
| Larsen & Toubro | TATA Power — UMPP Mundra |
| Salem Tube | — |
| The Atlantic Group | Savannah Electric Power Kraft #2 |
| Tico Titanium | — |
| Titan Metal Fab | BP Chemical |
| Titanium Fabricators | — |
| Tubes Inc. | — |
| Uniti Titanium | — |
| Waterco | — |
| Waterpik Technologies | — |
Our services
- We customise your grade 2 titanium tubes to your specifications, certify them with various certifying organisations (e.g., TÜV Rheinland or DNV), and begin upgrading titanium semi-finished products for the corresponding applications.
- We will be delighted to advise and explain what you need to know when obtaining titanium tubes, as well as which criteria you should pay particular attention to while producing the components.
- If you have long-term delivery responsibilities, you can enter into a framework agreement with Daxun. We guarantee prices and quantities within specified dates.
- Benefit from our extensive knowledge in the worldwide procurement industry. Since 2001, we have served small, medium-sized, and large businesses at home and abroad.
- Have you got any questions? Our service centre would be delighted to answer any queries you have about finished titanium tubes and unusual materials. We look forward to hearing from you.
The grade of titanium alloy you need depends on the project you are working on, as each grade has different benefits.
All grades of titanium alloy are extremely strong and corrosion resistant, which means they will continue to work well in the harshest conditions.
The higher grades of titanium alloy (5-12) are alloys designed for specific benefits. For example, grade 12 titanium alloy has excellent heat resistance, making it a perfect choice for shell and tube heat exchangers, hydraulic piping, and chemical industry equipment.
Grades 1-4 are pure titanium alloys, and they are a perfect choice if you need a weldable, ductile material for piping systems and tubing. You will find lower grades used in the marine and industrial industries.
If you are starting a project and are unsure which grade of titanium alloy is best for you, contact us today; we are more than happy to help you.
At DAXUN, we offer a wide range of titanium alloy grades from grade 1 to grade 12.
Grades 1-4 are pure titanium, while higher grades are alloys.
Alloy grades are popular for their high strength-to-weight ratio.
The most commonly used titanium alloy grade we find is grade 5. While still high in titanium, this grade is one of the most reliable because it can withstand temperatures up to 600°F and withstand extreme conditions.
Higher grades are favored by industries such as aerospace and marine industries for their wear and corrosion resistance.
Conversely, lower grades are primarily used for welding due to their lower strength.
To learn more about the differences between different grades of titanium alloy, call +86 13382898899 today to speak directly with our experts.
While the grade of titanium does increase the cost slightly, the total cost is primarily determined by the shape and form of titanium you require.
At DAXUN, we offer a wide range of titanium products, including pipe/tubes, tubes, coils and bars. The length, width and quantity of each item you require will affect the amount you pay at checkout.
Unfortunately, it is difficult to come up with a price online without knowing much about your project and what the titanium will be used for.
Fortunately, our team of experts are always here to help and advise you on your titanium needs. By sending an email to [email protected], we will be able to get back to you with some advice and an accurate quote.
Make sure to include as much information as possible about the grade, shape and quantity of titanium you require to get a better understanding of your needs.
The team at DAXUN is experienced, knowledgeable, and friendly. With years of experience in the industry, they know all about titanium, including its uses, benefits, and grades.
For regular updates on titanium, its uses, and its applications across industries, be sure to check out our blog. Our experts have written easy-to-follow guides that you can always refer to when you have questions.
If you’re still having trouble, feel free to contact us; we’ll be happy to help.
By sending an email to [email protected], you’ll receive a quick response. Make sure to include as much detail as possible in your question so we can recommend a suitable solution.
Please fill in the form on the “Contact Us” page, or call our sales manager at “+86 13382898899”, we will contact you as soon as possible. Our WhatsApp is online, and email ([email protected]) will be checked within 6 hours. Every inquiry or message will be responded to promptly. In addition, we share market information with our customers every week
We can provide stainless steel pipe/tube samples for you to check the quality. Sample is free and you just pay the freight.
We’ve exported to more than 42 countries, such as Canada, Chile, Kuwait, Germany, South Korea, Saudi Arabia, Singapore etc.
Our MOQ is 1 ton for stainless steel pipe/tube.
Trial orders can be delivered within a week. For regular orders, it takes two weeks roughly.
