Grade 23 Ti 6Al-4V ELI Titanium Alloy Pipe Manufacturer
As a leading supplier of titanium and titanium alloy tubes in China, Daxun provides high-performance titanium tubes to the world.
- Titanium tube Grade：Grade 23 – UNS R56401
- Titanium tube types：Seamless Ti tube, Ti welded tube, forged Ti tube
- Titanium tube density The density of grade 23 titanium is 4.51 g/cm3
- Standards：ASTM B338/ASME SB338、ASTM B337/ASME SB337、ASTM B861/ASME SB861、ASTM B862/ASME SB862、AMS4911、AMS4928
- Softest Ti,High ductility, Very corrosion resistant, good cold formability
————Daxun produces titanium tubes in China to meet the diverse and ——demanding needs of customers！
Grade 23 Titanium Alloy Pipe Manufacturer - Daxun Alloy
Provide High Quality Grade 23 Titanium Pipe to Customers Around The World
Grade 23 titanium pipe is a commercial grade of Ti-6Al-4V ELI (Extra Low Interstitial). It is an improved alloy that further reduces the content of interstitial elements such as oxygen, iron, and nitrogen (such as oxygen content ≤ 0.13%) based on the classic Ti-6Al-4V (Grade 5). It is characterized by high strength, light weight, strong corrosion resistance, and is very friendly to the human body (high biocompatibility). This material is both strong and durable and can be used in various harsh environments, such as strong acids, strong alkalis, and seawater. It is not easily damaged. Its density is much smaller than that of steel, but its strength is close to that of steel, so it is often used to manufacture products that require both lightness and high durability.
Where is Grade 23 titanium pipe used?
In the medical field, it is used to make artificial joints, bone fixation pipes and dental implants because it is harmless to the human body and can be used for a long time without being easily damaged. It is also used to make key parts on aircraft and spacecraft, such as landing gear and engine parts, which can reduce weight and ensure strength. Chemical plants use it to make corrosion-resistant pipes and reactors, which can also be used for a long time in strong acid and alkali environments. In shipbuilding and marine engineering, it is used to make ship parts and seawater treatment equipment, and is not afraid of seawater corrosion. In addition, this material is also used in some parts of high-end sports equipment and nuclear power plants because it is both light and durable and can adapt to various extreme environments.
Key Notes:
ELI (Extra Low Interstitial): Grade 23 has stricter limits on oxygen, nitrogen, hydrogen, and carbon compared to standard Grade 5 (Ti-6Al-4V) to enhance ductility and biocompatibility.
Primary alloying elements: Aluminum (Al) and vanadium (V) contribute to strength and phase stability.
Impurity control: Low iron, carbon, nitrogen, and hydrogen ensure superior corrosion resistance and fatigue performance.
Key performance:
High strength + high toughness: tensile strength can reach 895-930 MPa (annealed state), elongation ≥10%, better than ordinary Grade 5, suitable for scenes with dynamic loads.
Excellent corrosion resistance: acid resistance (such as hydrochloric acid, sulfuric acid), alkali resistance, seawater resistance, outstanding performance in medical implants and chemical equipment.
Biocompatibility: non-magnetic, non-toxic, excellent compatibility with human tissue, is the preferred material for orthopedic implants.
Processability: can be formed by forging, rolling, machining, welding performance is better than ordinary titanium alloy.
Data
- Parameter
| Element | Ti | Al | V | O | Fe | C | N | H | Other elements |
| Composition Range (wt.%) | >89% | 5.50 – 6.75% | 3.50 – 4.50% | ≤ 0.13% | ≤ 0.25% | ≤ 0.08% | ≤ 0.05% | ≤ 0.0125% | ≤ 0.4% |
Choose Daxun to help your project take off.

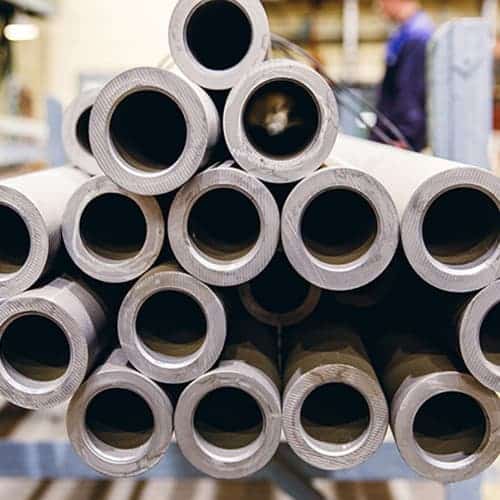

Advanced Production:Titanium seamless pipe

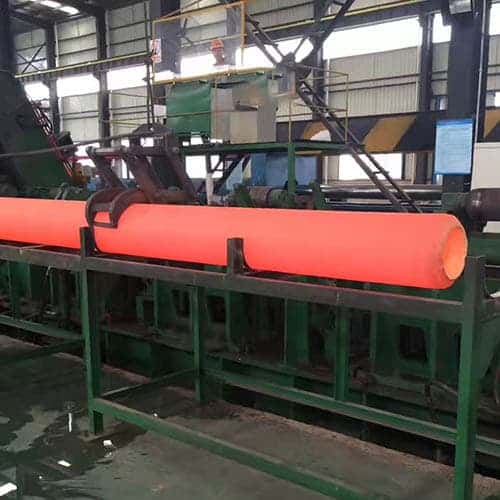

- Titanium seamless tubes are hot rolled or hot extruded, straightened, processed with inner and outer diameters, and surface etched. Tubes can be supplied in heat-treated or non-heat-treated forms. Daxun has 100% ultrasonic testing capabilities. Hot rolled tube/hot extruded titanium seamless tube: outer diameter 1.0 mm to 325 mm, wall thickness 0.3 mm to 50 mm, length up to 12000 mm. Cold rolled titanium seamless tube: cold processed tubes are supplied after heat treatment, surface etching, hydrostatic test or ultrasonic inspection according to the requirements of the manufacturing specification. Outer diameter 6 mm to 102 mm, wall thickness 0.5 mm to 20 mm, length up to 9000 mm.
- (The above is agreed upon by the manufacturer and the customer based on the specific situation)
Grade 23 Titanium Tube Features
Grade 23 Titanium Tube is the softest form of titanium and has the highest ductility. It has good cold forming characteristics and offers excellent corrosion resistance. It also has excellent welding properties and high impact toughness.
- Softest Titanium
- Highest Ductility
- Excellent Corrosion Resistance
- Good Cold Formability
Advanced Production： Titanium Welded Tube

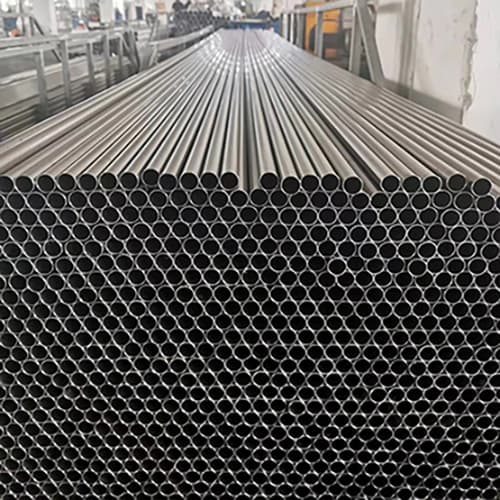

Titanium Welded Tube: Diameter ranges from 6.0mm to 1219mm, wall thickness ranges from 0.3mm to 30mm (depending on diameter), length up to 25000mm, made from Gr1 titanium tube. Welded tubes are made from flat rolled billets (tube blanks) on electric tube welding machines using automatic tungsten inert gas (argon) welding, and heat treated on the mill line. Mechanical tests, geometric measurements, 100% ultrasonic and eddy current testing, pneumatic or hydrostatic testing are performed before the finished titanium welded tubes are packaged according to customer specifications. Manufacturing technology as well as inspection and testing equipment ensure that thin wall welded tubes meet ASTM B 338 and ASME SB 338 specifications.
Test Reports
The test reports we provide include: Factory test certificate for Grade 23 titanium welded pipe and Grade 23 titanium seamless pipe, EN 10204 3.1, Chemical report, Mechanical report, PMI test report, Visual inspection report, Third-party inspection report, NABL approved laboratory report, Destructive test report, Non-destructive test report. (Daxun will provide according to customer’s requirements)
Applications and standards
Titanium Grade 23 Pipes and Tubing are extensively applied in extremely corrosive conditions in the below Industries：
- Chemical processing parts such as heat exchangers, reaction vessels, evaporators and delivery pipelines, automotive exhaust, oil and gas industry, petrochemical plants, chemical plants, industrial machinery, power industry, paper and pulp industry, food processing industry, refineries, pharmaceutical and food processing equipment, etc.
- Specifications : ASTM B861, B862, B338 / ASME SB861, SB862, SB338
Standard : ASTM, ASME and API
Quality, delivery, inspection
Daxun performs several quality assurance tests, these tests include flattening test, flaring test, ultrasonic flaw detection test, pitting and resistance test, mechanical test, hardness test, material positive identification, expansion test, etc. All these tests ensure that the Grade 23 Titanium Welded Pipe and Grade 23 Titanium Seamless Pipe materials are suitable for the required application. During the production process, we measure the diameter, thickness and surface of the products. Our standard delivery time is 5-7 days and the delivery time for special size products is 15-20 days.
- Our delivery time is strictly in accordance with the contract.
- Support customer third-party agencies to go to the factory for inspection
- Support free samples for customer testing
- Support on-site or video factory inspection

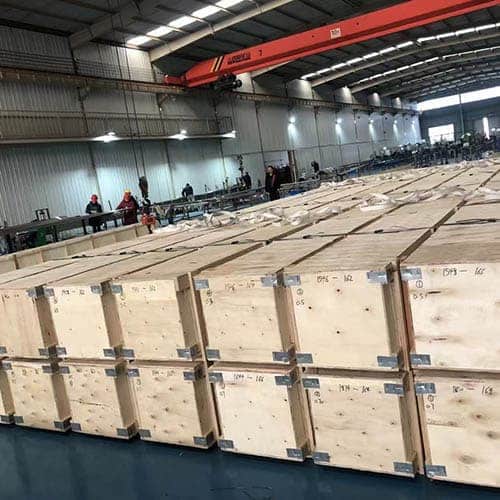

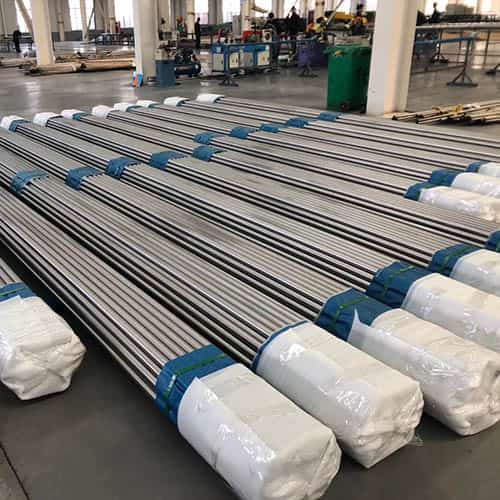

Packaging
Daxun Alloy ensures the best quality of packaging as it plays an important role in international freight where goods go through various channels to reach the final destination, so we pay special attention to packaging. We pack our goods in many ways depending on the product. We pack our products in many ways such as:
• Boxes and crates
• Shrink wrap
• Wooden pallets
• Wooden boxes
Technical Support
If you need any additional technical assistance, our resident metallurgist and knowledgeable staff will be pleased to help. Additionally, Daxun boasts a certified testing laboratory—a first in the multi-metal and plastic inventory industry. This, in our opinion, demonstrates our unwavering dedication to quality and our philosophy as a full-service supplier.
Daxun Grade 23 Titanium TUBE Let your brand improve rapidly
- Gallery
Grade 23 titanium tube form (4)
-

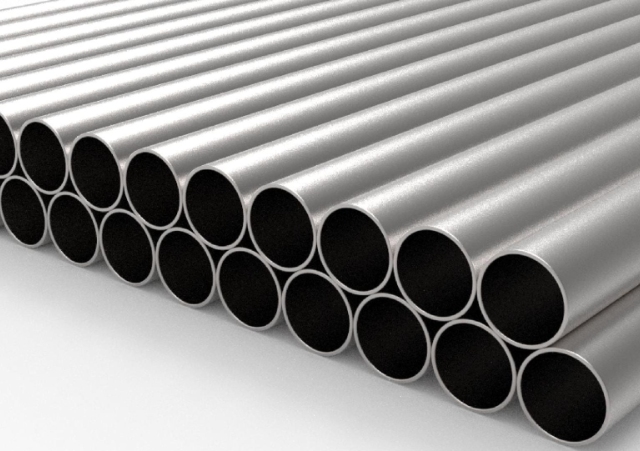

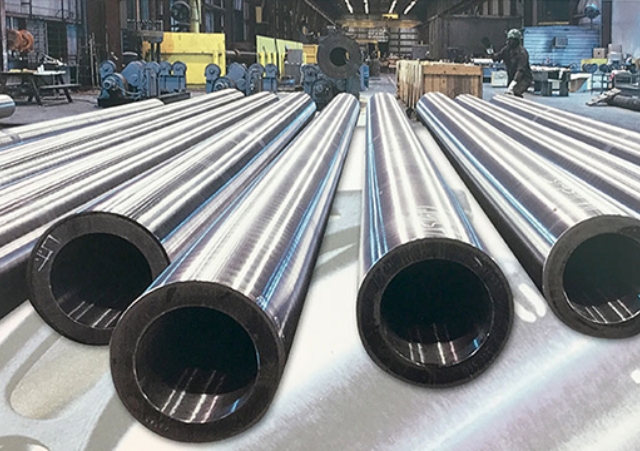

Titanium seamless tubes are made by piercing and drawing solid titanium bars, and the hollow part of the tube is made by piercing or hot extrusion. Titanium seamless tubes are ideal for very large diameter to wall thickness ratios and have very good external dimensional tolerances.
-
Titanium welded pipe is a tubular product made of strip titanium that is roll formed and fusion welded along the longitudinal seam. The welding process used by Daxun Alloy does not use any filler metal during the welding process.
-
Titanium square tubes are drawn from round tubes or round tube billets and can be formed into right angles or rounded corners. They can also be cold extruded, which is efficient and low cost. The only disadvantage is that the tolerance will gradually increase.
-
Tubular products are welded and then re-drawn to final size. Welding and drawing is ideal for producing thick walled, large diameter tubes that cannot be welded directly to size but still offer cost savings over seamless tubes. All Daxun welded and drawn tubes are bright annealed.
