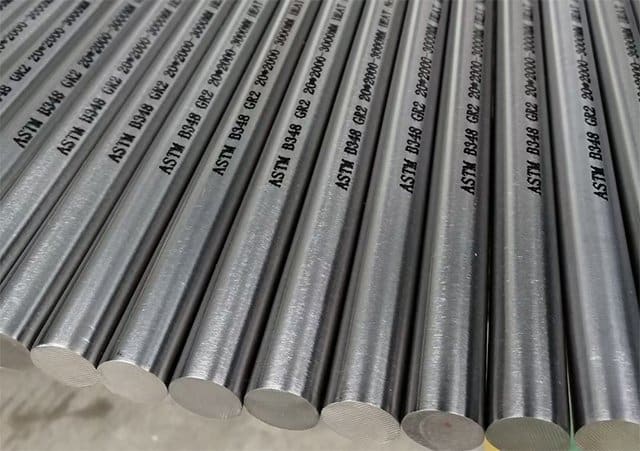

Titanium rods

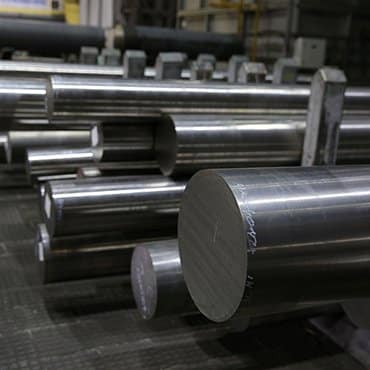

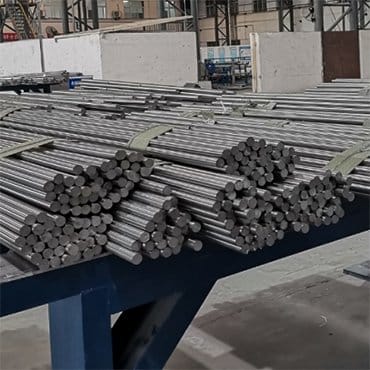

Hot Rolled Ti Rod
Heated and rolled through multiple passes to the specified diameter,
meeting standard mechanical and dimensional requirements.

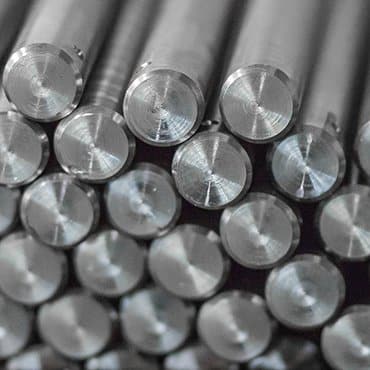

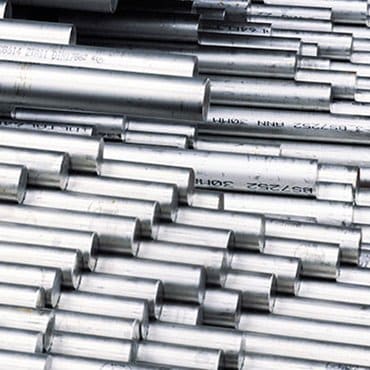

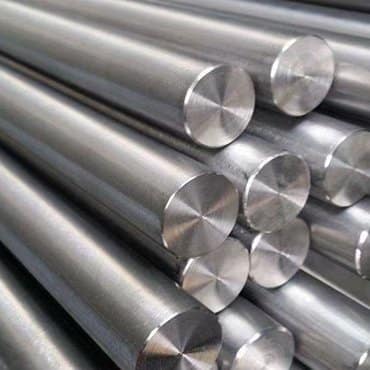

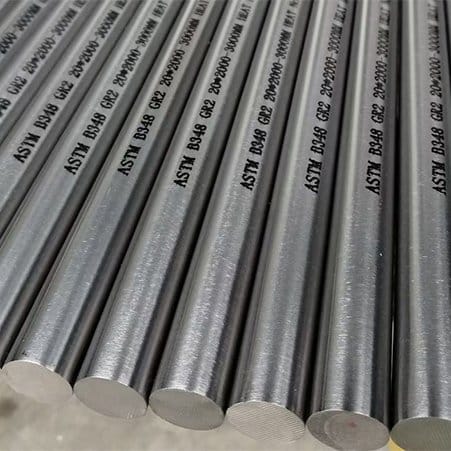

Cold Drawn Bright Ti Rod
Drawn under cold working conditions for a smooth surface, with polishing
and grinding available.

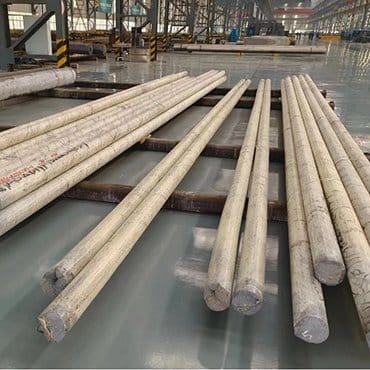

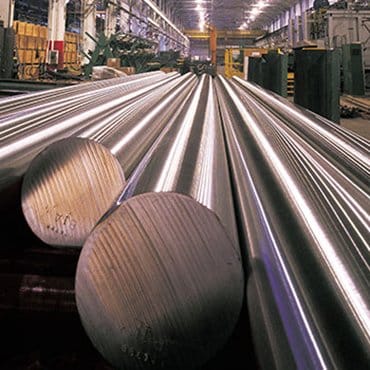

Forged Ti Rod
Forged through multiple passes to refine grain structure and improve
mechanical properties over rolled bar.
Grades and standards of Daxun alloy titanium rods
Daxun stocks CP Grade 1, Grade 2, and Grade 5 (Ti-6Al-4V) titanium rod, with Grade 7, 9, 11, 12, 16, 17, 18, and 23 also available. Diameters range from 1mm to 300mm, with custom orders available for larger sizes. Titanium rod is produced to ASTM B348 and ASTM B381, with medical-grade material available to ASTM F67 and F136 for implant applications. AMS specifications are also supported AMS4928、4967. Send your grade, diameter, standard, and quantity for a quote.
Daxun operates a complete production cycle, from raw material through finished, precision-machined bar. Common sizes and grades are stocked across our service center network for fast delivery, with custom sizes and just-in-time stocking programs available for quantities below standard mill minimums.
Brands and characteristics of various titanium rod
Each titanium rod material has its own different usage scenarios.
CP Grade 2 balances strength and ductility, making it the most widely specified commercially pure grade for general industrial use.
Titanium rods are commonly used in automobile manufacturing transmissions, chassis parts, wheels and other components.
Titanium rods can also be used as medical instruments, such as scalpels, surgical forceps, medical equipment, etc.
Titanium rods are used to make aerospace components, as well as engine nacelles and internal engine propulsion units.
Titanium rods for industrial machinery parts, structures and engine components
Titanium rods for industrial machinery parts, structures and engine components
Titanium rods for industrial machinery parts, structures and engine components
Titanium rods for industrial machinery parts, structures and engine components
Titanium rods for industrial machinery parts, structures and engine components
Titanium rods for industrial machinery parts, structures and engine components
Titanium rods for industrial machinery parts, structures and engine components
Titanium rods for industrial machinery parts, structures and engine components
Titanium rod production flow
With our reliable titanium rods, their performance can be customized to suit your application.
-
-

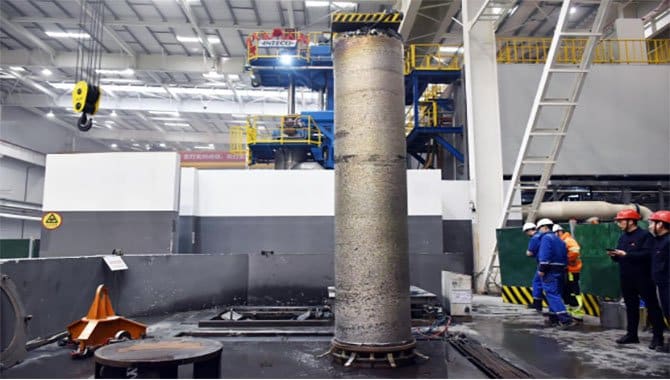

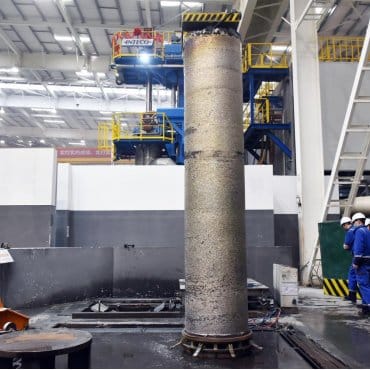

Smelted Titanium Ingot
Titanium ingots are smelted at least three times to ensure stable composition and performance.
-
Heating
Titanium The raw material is heated to the required temperature and forging begins.
-

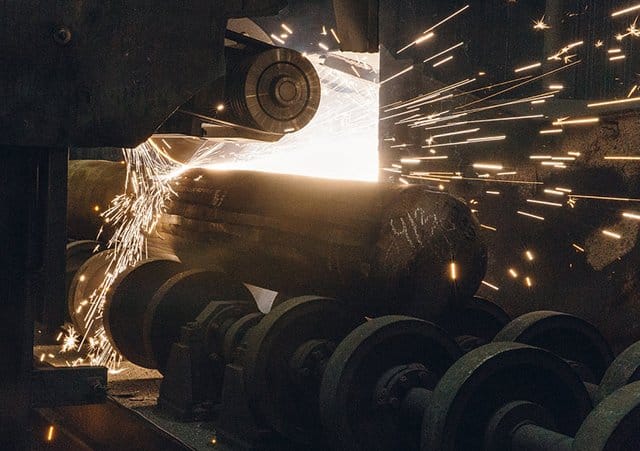

Forge
The forging process uses high-precision forging equipment and undergoes multiple forging passes.
-
-
Finished product testing
Inspection before incoming and outgoing storage is essential.
Main features of titanium rod
Titanium has a density of approximately 4.51 g/cm³ — about 60% of steel’s density at comparable strength.
Titanium is 100 times more corrosion resistant than steel
Suitable for situations where magnetic field interference is avoided
Titanium alloy has high strength

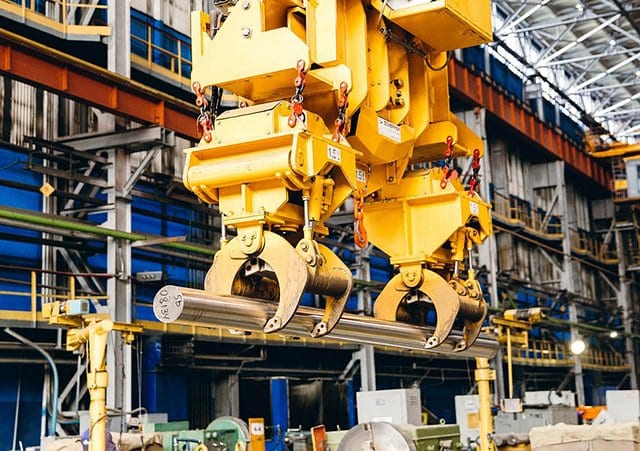

Daxun’s titanium rod manufacturing capabilities
Forming capabilities include radial forging machines, heat treatment furnaces, melting furnaces, and rolling mills for manufacturing titanium rod and bar. Radial forging refines grain structure and improves mechanical consistency in larger-diameter bar, while rolling mills handle volume production of standard round and rectangular sections. Equipment is matched to the product form and grade — forged bar for higher-strength applications, hot rolled bar for standard industrial grades — so send your specification and we’ll confirm the right production route for your order.
Daxun’s heat treatment furnace
Titanium rod heat treatment uses controlled furnace equipment to ensure stability and consistent performance across the specified condition. Heat treatment relieves internal stress from forging and rolling, and stabilizes the microstructure to the properties required for the grade. Stress relief annealing is standard for most commercially pure grades, while alloy grades such as Grade 5 (Ti-6Al-4V) can be solution treated and aged to reach higher strength levels. Confirm the required condition with your order and we’ll match the heat treatment cycle to it.
Daxun’s smelting ability
Daxun uses electron beam melting to reduce impurities during the smelting process, improving the consistency and performance of the finished titanium rod. Electron beam melting removes high-density inclusions and volatile impurities that are difficult to eliminate with conventional melting, which is one reason it’s widely used for titanium destined for critical structural and medical applications. This is combined with in-process testing at each stage to confirm the material meets the specified chemistry and mechanical properties before it moves to forming.
Powerful titanium rod solutions
Daxun is a vertically coordinated supplier of titanium rod and rolled products, from smelting through finished bar.
Technical Information
Woven bag + wrapping film packaging
Fumigation-free wooden box packaging
Application cases of titanium rods and titanium round rods in different industries.
Titanium alloy rod offers strength, toughness, and corrosion resistance suited to demanding structural applications.
Serving the petrochemical industry for electrolyzers, blowers, reaction towers, heat exchangers, pressure shafts, distillation towers, valves, and pumps. Send your specifications for a quote.
Titanium alloy rods are used to manufacture parts such as pumps, valves, drive shafts, propellers, whip antennas, acoustic devices, fire-fighting equipment, etc. for ships.
Deep-sea exploration equipment Deep-sea exploration is one of the important directions in the field of ocean engineering, and titanium alloy rods have become ideal materials for various deep-sea exploration equipment due to their corrosion resistance, high strength and other advantages. Drill pipes, deep-sea buoys, detectors, sonar equipment, etc. can all be made of titanium alloy rods to ensure long-term reliable operation in harsh marine environments.
Daxun supplies titanium rod for pharmaceutical and biopharmaceutical equipment, with high-purity and ultra-high-purity material available on request.
Daxun supplies titanium rod for power generation equipment components, drawing on smelting and processing capability from raw material through finished bar.
Our titanium rod stock sizes
- Inventory data
| Diam (mm) | Surface | Length (mm) | Comment |
| φ3.0-12.0 | Bright | 3000 | AAA |
| φ14.0-25.0 | Bright | 3000 | AAA |
| φ25.0-45.0 | Bright | 3000 | AAA |
| φ50.0 | Bright | 3000 | AAA |
| φ55.0 | Bright | 3000 | AAA |
| φ60.0 | Bright | 6000 | AAA |
| φ65.0 | Bright | 6000 | AAA |
| φ70.0 | Bright | 6000 | AAA |
| φ75.0 | Bright | 6000 | AAA |
| φ80.0 | Bright | 6000 | AAA |
| φ100.0 | Bright | 6000 | AAA |
| φ110 | Bright | 2000-6000 | AAA |
| φ120 | Bright | 2000-6000 | AAA |
| φ130 | Bright | 2000-6000 | AAA |
| φ140 | Bright | 2000-6000 | AAA |
| φ150 | Bright | 2000-6000 | AAA |
| φ160 | Bright | 2000-6000 | AAA |
| φ165 | Bright | 2000-6000 | AAA |
| φ170 | Bright | 2000-6000 | AAA |
| φ180 | Bright | 2000-6000 | AAA |
| φ190 | Bright | 2000-6000 | AAA |
| φ200+ | Bright | 2000-6000 | AAA |
| If you need to know more about the size, please contact Daxun | |||

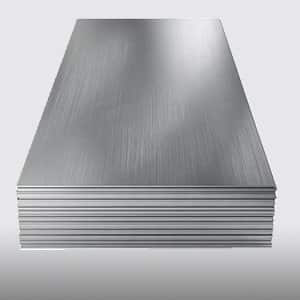

Related Product
Daxun Alloy
Regarding titanium rods, we can handle any type of inquiry. Please feel free to ask us. We will make recommendations based on each client’s needs.
Yes, we have complete specifications and inventory and can quickly meet your needs.
Yes, it can be customized. You can contact us and send us the customized specifications and quantity.
Our transportation methods generally include sea transportation, land transportation, and sea transportation. Reach you quickly and safely.
Because our output is high, the cost will be much lower, so the price is low.
We attach great importance to product quality and have passed various quality system tests.
