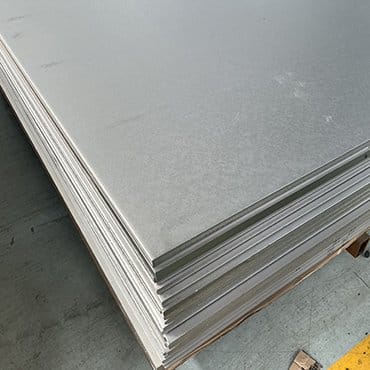

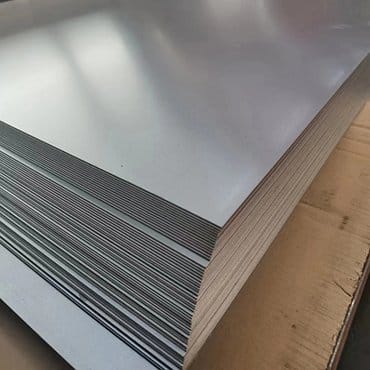

Daxun has a full range of pure titanium plates
- Grade:CP Grade 1 to Grade 18
- Type: Titanium and titanium alloy plates
- Hot rolled titanium plate 3.0mm-100mm
- Cold rolled titanium plate with thickness 0.3mm to 3.2mm
- Forged titanium plate: thickness 20mm-380mm
- Standards：ASTM AMS ASME GB GJB DIN JIS
Daxun’s titanium plates offer highly competitive pricing without compromising on quality, delivering the best balance of performance and cost for our customers.
Applications and Usage for Titanium Sheet and Plate
In the past 20 years, our Titanium sheet and Plate have been widely used in aerospace, Chemical Processing, Marine Applications, Medical Devices, and Architecture. Daxun’s CP Grade 5 (also known as Ti-6Al-4V) can be used in Automotive and sports equipment. We are proud to see our product can take extreme temperatures (ATI 70 1,740°F, Melting Range 3,000 °F) and also use in the human body to provide a lightweight component to support individuals.
Daxun Alloy’s Titanium Sheet and Plate
Daxun is the leading Chinese manufacturer of titanium plates. We produce high-quality pure titanium plate. Check out our company profile to learn more about us. We are happy to provide all the technical documentation, testing certification, and quality assurance. Also, welcome to China to take a day tour of our factory. We believe in quality over quantity and have provided transparency and trust in business practice for the past 24 years.
Daxun not only serves the global market but also supplies high-performance titanium plates for China’s national defense sector. With exceptional strength, toughness, and corrosion resistance, our titanium plates are widely applied in military equipment, naval shipbuilding, aerospace, and protective systems. Through stringent quality control and advanced processing technologies, we ensure that every plate meets the demanding standards of the defense industry, contributing to national security and the advancement of cutting-edge technologies.
Characteristics of various titanium plates
Each titanium plate material has its own different usage scenarios.
Industrial pure titanium plate, easy to weld, corrosion-resistant, and can work at 300°C for a long time.
Industrial pure titanium plate, easy to stretch and bend, can work at 300℃ for a long time.
High strength, light weight, good neutralizing performance, and can work at 400℃ for a long time
Suitable for aerospace parts production, high temperature resistance and high strength.

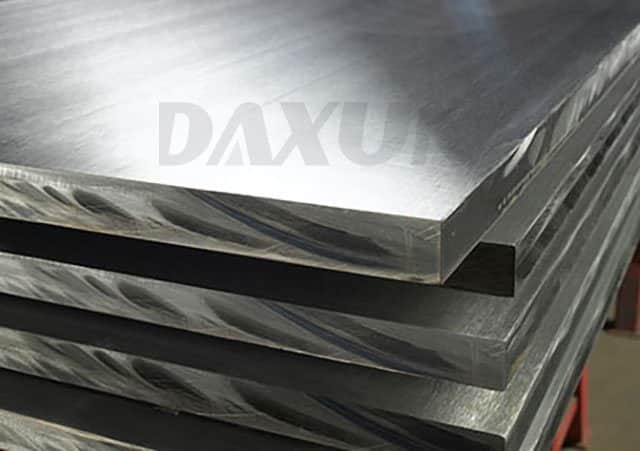

Forged titanium plates have good strength and toughness, and the grains are refined.
Titanium grade 5 belongs to α+β type titanium alloy and has good comprehensive properties.
Titanium and steel plate composite materials for power plant chimneys
Low density, corrosion resistance, acid and alkali resistance, light weight and easy to process.
Low density, corrosion resistance, acid and alkali resistance, light weight and easy to process.
Grade 12 titanium plates have better corrosion resistance than industrial pure titanium plates

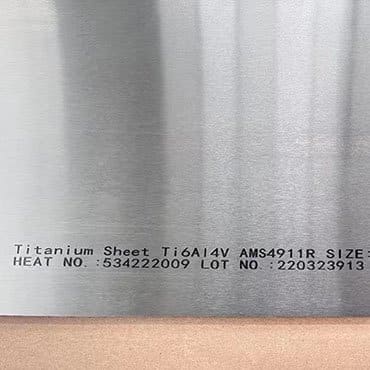

Ti 6Al-4V sheet has been widely used in aerospace and military fields
Ti 6Al-4V plates and plates are α+β titanium alloys and have good overall properties.
Titanium plate production flow
With our reliable titanium plates, their properties can be customized to suit your application.
-
Choose titanium spongeChoose titanium sponge that meets your smelting requirements
-
carry out smeltingThe third smelting uses EB furnace and vacuum consumable furnace.
-

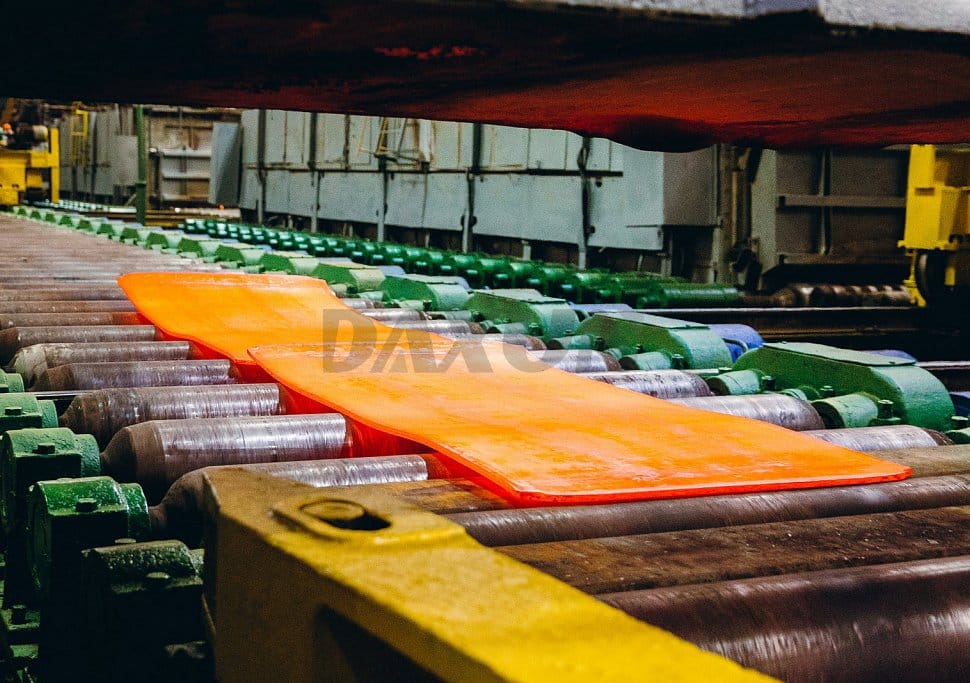

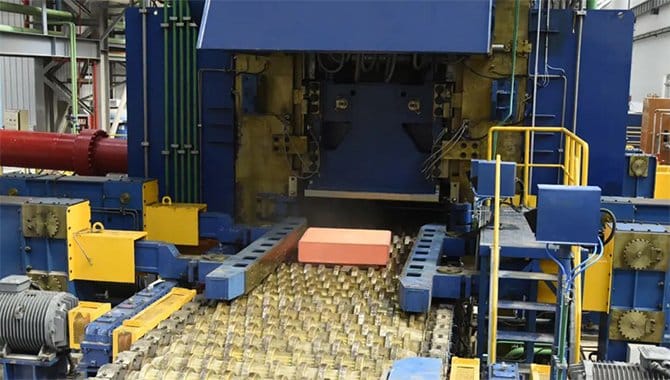

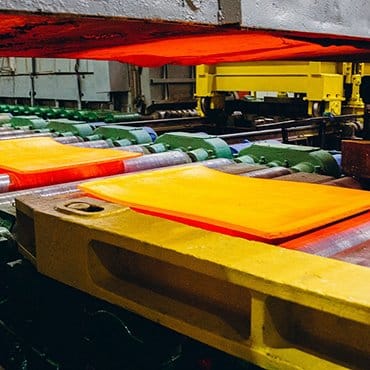

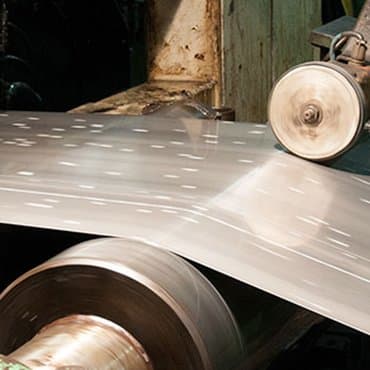

RolledAfter heating, it undergoes several rounds of rolling, then trimming and straightening to become a titanium plate.
-

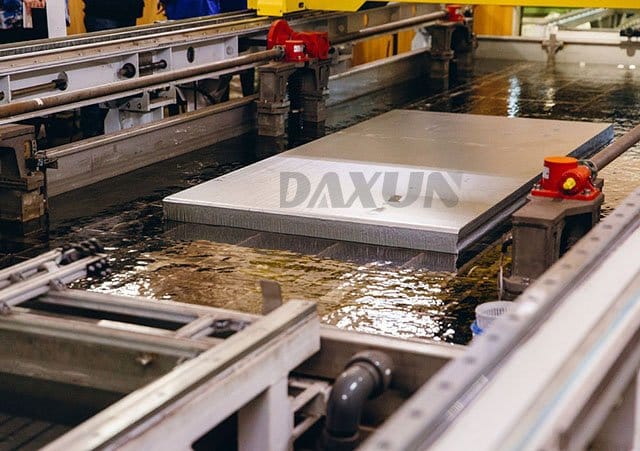

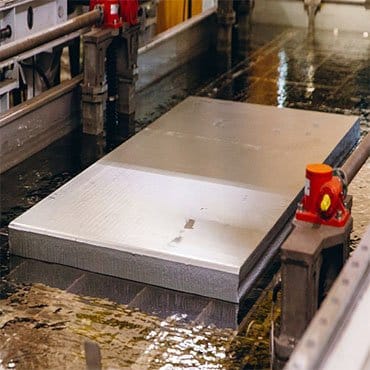

Surface treatmentWe can pickle, polish, sandblast to get a better surface
-

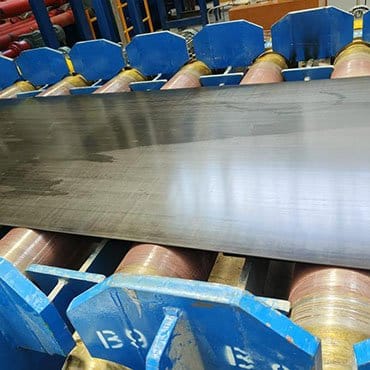

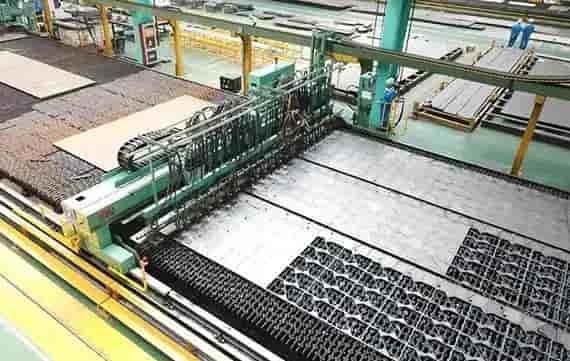

Board trimmingRemove burrs and defects to improve the quality and finish of the board, making it flatter and smoother.
-
Inspection and deliveryTo ensure product quality, inspections ensure products meet quality standards.
Main features of titanium plate
The density of titanium metal is 4.506g/cm3
Titanium is 100 times more corrosion resistant than steel
Suitable for situations where magnetic field interference is avoided
Titanium alloy has high strength
Commercially Pure Titanium and Titanium Alloys
Pure Titainium:
CP Grade 1, CP Grade 2, CP Grade 3, CP Grade 4
Titanium Alloys:
CP Grade5 , Ti 6AL-4V,Ti15333,Ti 4AL-3.5V
Other Available Titanium Product Grade:
Grade7, Grade 9, Grade 11, Grade 12, Grade 16, Grade 17, Grade 18 , Grade 23
SPECIFICATIONS
- UNS R50250
- UNS R50400
- UNS R50550
- UNS R50700
- 3.7035
- ASME SB 265
- ASTM B265
- ASTM B348
- ASTM F67
- ISO 5832-2
PHYSICAL PROPERTIES For CP 1, 2, 3, 4:
Melting Range: 3,000-3,040°F, (1,649 – 1,671°C)
Density: 0.163 lbs/in³; 4.51 gm/cm³
Beta Transus Temperature:
DAXUN 30 1,630°F ± 25F° (888°C ± 4C°)
DAXUN 40 1,675°F ± 25F° (913°C ± 4C°)
DAXUN 55 1,690°F ± 25F° (921°C ± 4C°)
DAXUN 70 1,740°F ± 25F° (949°C ± 4C°)

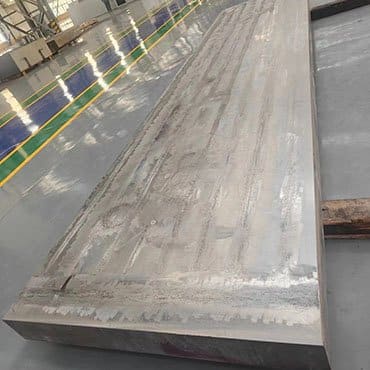

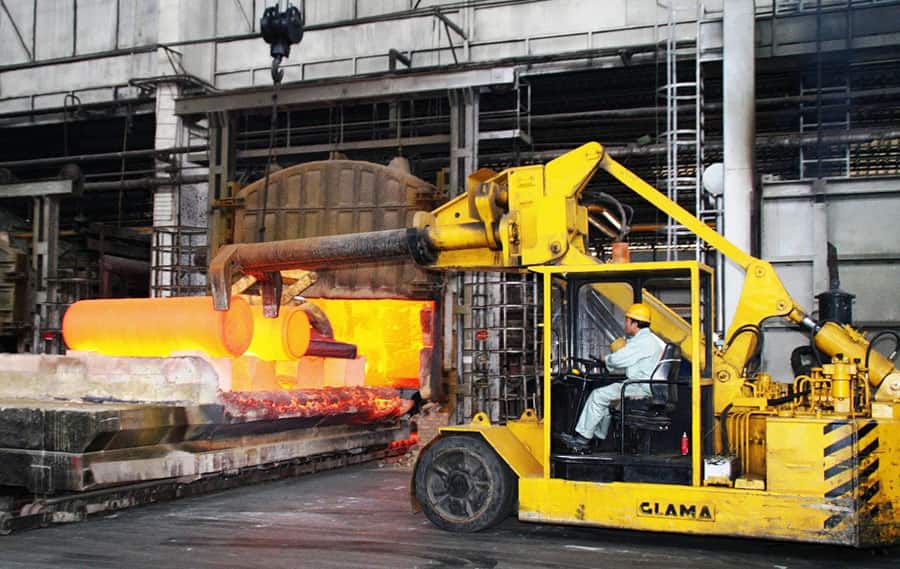

Forged titanium plate
We specialize in forging and processing high-performance titanium alloy plates with exceptional strength, corrosion resistance, and reliability. Our products are widely used in aerospace, medical devices, energy equipment, and other high-end applications, delivering premium solutions that meet international standards.

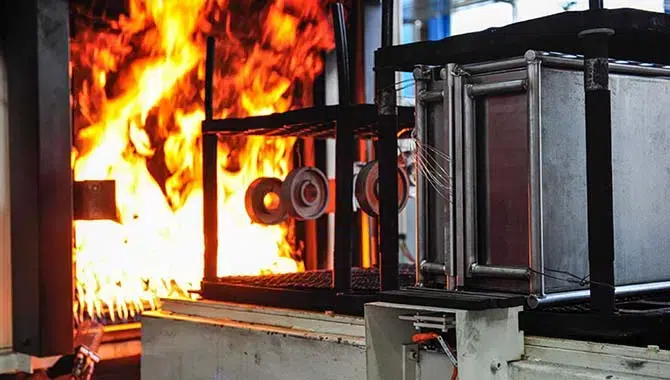

Titanium plate heat treatment
Heat Treatment Processes We Offer:
Stress Relief Annealing
Solution Annealing with Air or Water Quenching
Solution Treating + Aging (STA)
Other Processes Available upon Request

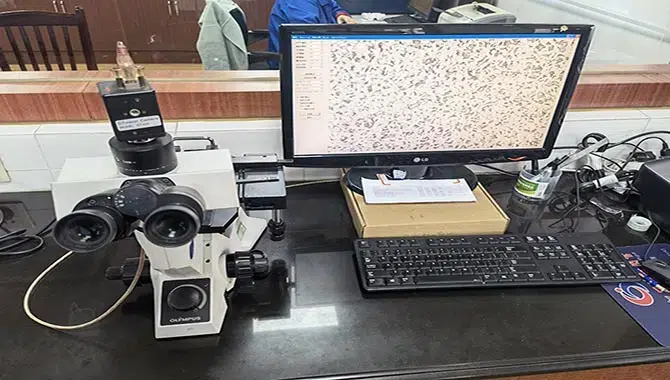

Titanium Plate Quality Inspection
At Daxun Alloy, every titanium plate undergoes comprehensive and rigorous inspection — from chemical composition and mechanical properties to non-destructive testing and corrosion resistance — ensuring unmatched quality. Backed by EN10204 3.1/3.2 certification and full compliance with international standards, our titanium solutions are trusted for the most demanding applications in aerospace, medical, and energy industries.
Corrosion Resistant Information
Our Tatanium’s low density and high strength provide good corrosion resistance.
| Nominal Composition | Forms | Coil | Sheet | Plate |
|---|---|---|---|---|
| CP Grade 1 | Ti |
√ |
√ |
√ |
| CP Grade 2 | Ti |
√ |
√ |
√ |
| CP Grade 3 | Ti |
√ |
√ |
√ |
| CP Grade 4
CP Grade 5 |
Ti
Ti |
√ √ |
√ √ |
√ √ |
| CP Grade 7 | Ti (Gr2) 0.2 Pd |
√ |
√ |
** |
| CP Grade 11 | Ti (Gr1) 0.2 Pd |
√ |
√ |
** |
| CP Grade 16 | Ti (Gr2) 0.05 Pd |
√ |
√ |
** |
| CP Grade 17 | Ti (Gr1) 0.05 Pd |
√ |
√ |
** |
| * Produced to ASTM, AMS, ASME and MIL Specifications. ** Inquire with your sales representative. |
||||
SIZES,TOLERANCES
| Sheet | |
|---|---|
| Width** (in) | Thickness (in) |
| 24″ – 48″ | Up to 0.1874″ |
| Strip | |
| Width (in) | Thickness (in) |
| 0.250″ – 24″ | 0.001″ – 0.1874″ |
| Plate | |
| Width (in) | Thickness (in) |
| 96″ | 0.1875″ – 4.0″ x 360″ max |
* Sizes and tolerances vary. Inquire with your sales representative.
Product technical details and mechanical properties
For specific technical details, please view the individual product pages. We also could provide a design and fabrication handbook for industrial applications workbooks, Technical Data Sheets, certification, and price quotes. For non- commercially pure titanium, we will give exact alloying elements, metals, materials, and grades, oxygen, nitrogen for each product.
Who is Daxun Alloy?
At Daxun Alloy, we provide top-quality metal material. Our specialty is Pure titanium products like titanium plate, titanium alloys (Alloy grade 5 and other ti alloy product), and various stainless products. We offer a one-stop procurement, processing, logistics, and retail solution, which lowers costs and enhances our customers’ competitive advantage. We deliver excellent products and services efficiently. Our goal is to help customers achieve production goals quickly. We are pro metal manufacturers and can offer a wide range of metal products.
Meet us on a tour trip in China?
No problem, we will arrange for you to take you to our factory directly. If you can’t come, a video call is also a good way to see how we are manufacturing your orders. Our strength is trust and transparency.
-
Full SDS (Safety Data Sheet) available to ensure safe use and compliance.
-
Each batch can be supplied with an SDS, meeting international standards.
-
SDS available upon request, supporting global compliance and safety.
Related Products:
Daxun Alloy
Regarding titanium plates, we can handle any type of inquiry. Please feel free to ask us. We will make recommendations based on each client’s needs.
A1: Our titanium plates meet ASTM B265, AMS, ISO, GB/T, and GOST standards. Specific standards can also be supplied upon request.
A2: Yes. Each batch is supplied with EN10204 3.1/3.2 certificates, and third-party inspection reports (such as SGS, TÜV, BV) can be provided if required.
A3: We conduct spectrometric chemical analysis, tensile testing, hardness testing, and non-destructive examinations to ensure full compliance with required specifications.
A4: Standard thickness ranges from 0.5mm to 120mm, width up to 2000mm, and length up to 6000mm. Tolerances follow ASTM or ISO standards, and special dimensions or surface finishes can be customized.
A5: With excellent corrosion resistance, strength-to-weight ratio, and biocompatibility, titanium plates are widely used in aerospace, petrochemical, marine engineering, medical implants, energy, and electronics.
A6: Options include hot rolled, pickled, polished, and sandblasted surfaces, with additional finishes available upon request.
A7: Standard specifications are available from stock. Customized products usually require 2–4 weeks, with expedited options available.

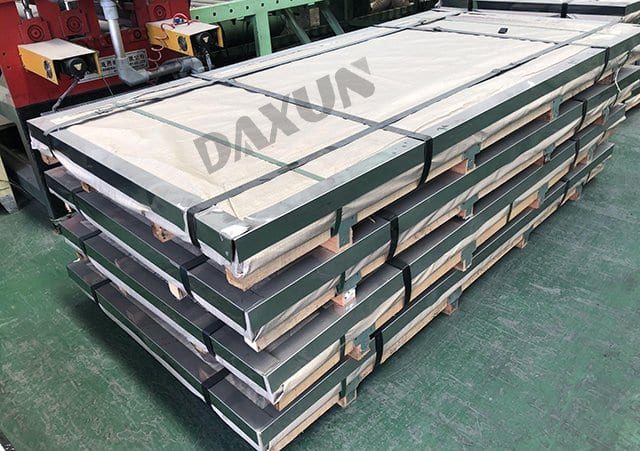

A8: All titanium plates are packed in moisture-proof wrapping with reinforced plywood cases or pallets, ensuring safe delivery by sea, air, or express.
A9: We support small trial orders, typically starting from 1–2 pieces. Larger orders benefit from more competitive pricing.
A10: Yes. We offer solution annealing, STA (solution treating + aging), cutting, welding, and machining services based on customer requirements.
A11: We supply commercially pure titanium (Grades 1–4) as well as titanium alloys including Ti-6Al-4V (Grade 5/23), Ti-3Al-2.5V, Ti-6Al-2Sn-4Zr-6Mo, Ti-15V-3Cr-3Al-3Sn (Ti15333), and other international and regional grades.
A12: We use strict composition control, surface pickling/passivation, and salt spray corrosion tests to guarantee performance in seawater, acidic, alkaline, or chloride environments.
A13: Yes. We can provide cutting, bending, welding, and machining services, delivering finished or semi-finished components per customer designs.
A14: Price is mainly determined by raw material costs, alloy grade, dimensions, surface condition, processing requirements, and order quantity. We offer competitive pricing based on market conditions and customer needs.
A15: Yes. We support EXW, FOB, CIF, and DDP, giving customers flexibility in logistics and delivery options.
