Daxun is an experienced galvanized plate manufacturer
As a leading galvanized steel plate supplier and exporter in China, Daxun supplies galvanized steel plates to the world.
- Manufacturing: hot-dip galvanized plate, electro-galvanized plate, galvalume plate
- Standards: ASTM, ASME, GB, DIN, JIS, ISO, EN, BS
- Thickness: 0.2mm-5.0mm
- Width: 600mm-1000mm-1200mm-1500mm etc.
- Length: 1000mm-2000mm-2438mm-3048mm-6000mm etc.
- Origin: Baosteel, Shagang, Angang, Shandong Steel, Shougang etc.
A global leader in galvanized steel plate fabrication services
Galvanized steel plates are among the most widely used materials across a wide range of industries. Composed primarily of steel coated with a protective layer of zinc, these plates are produced through hot-dip or electro-galvanizing processes to meet customers’ specific requirements for corrosion resistance and durability.
Available in various coating thicknesses and surface finishes, these plates are supplied in standard sizes or custom cut sizes to specific design profiles. High-grade galvanized steel plates are integral components in numerous applications, including roofing systems, automotive body parts, HVAC ductwork, agricultural equipment, electrical enclosures, fencing, outdoor signage, and a wide range of construction components.
Daxun offers a comprehensive range of galvanized steel plates and sheets, available in a variety of lengths, widths, thicknesses and coating weights to suit varying project specifications. Our inventory includes products that meet ASTM, EN and JIS standards, ensuring precise dimensions and consistent zinc coating (in grams per square meter) to meet stringent industry requirements.
The thickness of the zinc coating and the quality of the steel substrate are key factors in determining whether a steel plate is suitable for a specific application, affecting aspects such as corrosion resistance, formability, and weldability. Daxun offers a wide range of options to ensure that customers can select the right material to achieve optimal performance and service life in their respective products.
Data
- Parameter
- Equivalent Standard Comparison Table
| Category | Grades/Specifications |
|---|---|
| AISI | DX51D, DX52D, DX53D, S280GD, S350GD |
| ASTM/ASME (Structural Grades) | A653, A792, A875, A924 |
| ASTM/ASME (Pressure Vessel Grades) | A653 (CS Type B, SS Grade 33, 40, 50, 80) |
| CSA G40.21 (Structural Grades) | G90, G115, G140, G165, G185 |
| ABRASIVE RESISTANT GRADES | Galvannealed (A40, A60, G30, G60, G90) |
| SHIPBUILDING AND OFFSHORE GRADES | ABS, Lloyds, DNV, A653 (with marine coating), API 2H Grade 50 (galvanized) |
| EURONORM EN10025 (Available by special request) | EN 10346 DX51DZ, DX53DZ, S220GDZ, S250GDZ, S280GDZ, S320GDZ, S350GDZ |
| MILITARY GRADES | MIL-G-16474, MIL-G-16474 Type I, II, III |
| Thickness | 0.012″ to 0.25″ |
| Master Width | 24″ to 72″ |
| China | America | Japan | Germany | England | France | ISO |
|---|---|---|---|---|---|---|
| GB | ASTM | JIS | DIN, DINEN | BS, BSEN | NF, NFEN | ISO 630 |
| Q195 | Cr.B | SS330; SPHC; SPHD | S185 | 040; A10; S185 | S185 | |
| Q215A | Cr.C; Cr.58 | SS330; SPHC | ||||
| Q235A | Cr.D | SS440; SM400A | E235B | |||
| Q235B | Cr.D | SS440; SM400A | S235JR; S235JRG1; S235JRG2 | S235JR; S235JRG1; S235JRG2 | S235JR; S235JRG1; S235JRG2 | E235B |
| Q255A | SS440; SM400A | |||||
| Q275 | SS490 | E275A |
Choose Daxun and make your customers satisfied.
Stock Galvanized Plate Types

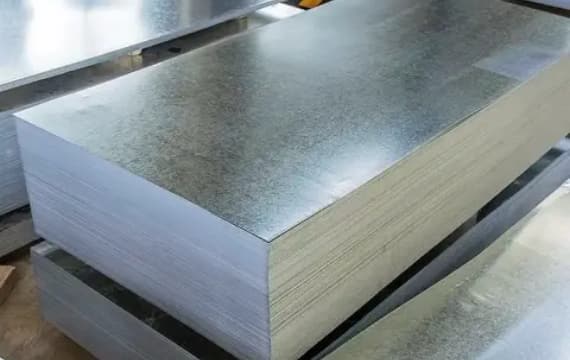

Hot-Dip Galvanized Steel Plate
Electro-Galvanized Steel Plate
Galvannealed Steel Plate
Galvalume Steel Plate
Zinc-Aluminum-Magnesium Coated Steel Plate
Advanced machining
As one of the largest processors and distributors of galvanized plate products in China, we offer a large supply of high-quality, competitively priced products through our network of metal service centers. We leverage our industry expertise, extensive experience and investment in innovative technologies to provide an unparalleled supply of galvanized plate.
Advantages of Buying Galvanized Plates in China
High quality and innovation:
Cost effectiveness:
Diverse product range and customization:
Government support and policy stability:
Combined with these factors, China becomes a strong sourcing source for galvanized plates, offering a balance of quality, price and reliability.
Let your brand improve rapidly
- TOLERANCE
- Other product series
Cold rolled sheet tolerances
| Size | Tolerance Rank | ||
| Group 1 | Group 2 | Group 3 | |
| 0.4 | 0.3 ~ 0.32 | 0.33 ~ 0.37 | 0.37 ~ 0.39 |
| 0.5 | 0.4 ~ 0.42 | 0.43 ~ 0.47 | 0.47 ~ 0.49 |
| 0.6 | 0.5 ~ 0.52 | 0.53 ~ 0.56 | 0.57 ~ 0.59 |
| 0.7 | 0.6 ~ 0.62 | 0.63 ~ 0.67 | 0.67 ~ 0.69 |
| 0.8 | 0.7 ~ 0.72 | 0.73 ~ 0.77 | 0.74 ~ 0.79 |
| 0.9 | 0.8 ~ 0.82 | 0.83 ~ 0.87 | 0.87 ~ 0.89 |
| 1 | 0.89 ~ 0.9 | 0.91 ~ 0.94 | 0.94 ~ 0.99 |
| 1.2 | 1.02 ~ 1.08 | 1.09 ~ 1.15 | 1.16 ~ 1.18 |
| 1.5 | 1.32 ~ 1.38 | 1.39 ~ 1.45 | 1.46 ~ 1.48 |
| 2 | 1.72 ~ 1.79 | 1.8 ~ 1.86 | 1.87 ~ 1.9 |
| 2.5 | 2.23 ~ 2.36 | 2.32 ~ 2.42 | 1.42 ~ 1.47 |
| 3 | 2.7 ~ 2.77 | 2.78 ~ 2.82 | 2.85 ~ 2.9 |
| Hot rolled plate tolerance | |||
| Size | Tolerance Rank | ||
| Group 1 | Group 2 | Group 3 | |
| 3 | 2.6 ~ 2.75 | 2.75 ~ 2.85 | 2.86 ~ 2.9 |
| 4 | 3.5 ~ 3.6 | 3.6 ~ 3.75 | 3.76 ~ 3.95 |
| 5 | 4.5 ~ 4.6 | 4.6 ~ 4.75 | 4.75 ~ 4.95 |
| 6 | 5.4 ~ 5.6 | 5.6 ~ 5.75 | 5.75 ~ 5.85 |
| 8 | 7.3 ~ 7.5 | 7.5 ~ 7.65 | 7.65 ~ 7.85 |
| 10 | 9.2 ~ 9.3 | 9.3 ~ 9.6 | 9.6 ~ 9.85 |
| 12 | 11.1 ~ 11.2 | 11.2 ~ 11.6 | 11.6 ~ 11.85 |
| 14 | 13.1 ~ 13.2 | 13.2 ~ 13.6 | 13.6 ~ 13.85 |
| 16 | 15.2~ 15.5 | 15.5~ 15.7 | 15.7~ 16.1 |
| 18 | 17.2~ 17.5 | 17.5~ 17.7 | 17.7~ 18.1 |
| 20 | 19.2~ 19.5 | 19.5~ 19.7 | 19.7~ 20.1 |
| 30 | 29.2~ 29.5 | 29.5~ 29.7 | 29.7-30.1 |
| 40 | 39.2~ 39.5 | 39.5~ 39.7 | 39.7~ 40.1 |
| 50 | 49.2~ 49.5 | 49.5~ 49.7 | 49.7~ 50.1 |
| 60 | 59.2~ 59.5 | 59.5~ 59.7 | 59.7~ 60.1 |
| Grade | Type | Thickness | Surface |
| Austenitic | 304/304H/304L/304J1 | 0.25-150mm | 2B/BA/NO.4/8K/SB/HL/NO.1 |
| 321 | 0.4-80mm | 2B/BA/NO.4/8K/SB/HL/NO.1 | |
| 316/316L/317L/316Ti | 0.3-80mm | 2B/BA/NO.4/8K/SB/HL/NO.1 | |
| Ferrite | 430 | 0.4-3.0mm | 2B/BA/NO.4/8K/SB/HL |
| Ultra Pure Ferrite | 443 | 0.4-2.0mm | 2B |
| 436L/439/444/441 | 0.5-3.0mm | 2B、2D | |
| 409L | 0.4-2.5mm | 2B、2D | |
| Grade | Type | Thickness | Original |
| Heat-resistant Steel | 309S | 0.5-40mm | CHN |
| 310S | 0.5-40mm | CHN | |
| Duplex Steel | 2101 | 1.5-50mm | CHN |
| 2304 | 3.0-50mm | CHN | |
| 2205 | 0.5-60mm | CHN | |
| 2507 | 1.0-60mm | SWE / JPN / CHN | |
| Super Austenitic Steel | N08904 | 0.6-50mm | SWE / JPN / CHN |
| S31254 | 0.5-50mm | SWE / JPN / CHN | |
| N08926 | 0.5-50mm | SWE / JPN / CHN | |
| N08367 | 0.5-50mm | SWE / JPN / CHN | |
| Nickel Base Alloy | N08031 | 1.0-50mm | US / JPN / GER |
| N08810/N08800 | 0.8-50mm | US / JPN / CHN | |
| N08028 | 1.0-20mm | US / GER / JPN | |
| N08020 | 1.0-20mm | US / GER / JPN | |
| N08825 | 0.8-40mm | US / GER / SWE / JPN / CHN | |
| N10276 | 0.5-50mm | US / GER / JPN | |
| N06022 | 1.0-50mm | US / GER / JPN | |
| N06625 | 0.8-20mm | US / GER / CHN | |
| N04400 | 1.0-20mm | US / GER / JPN | |
| N06600 | 1.0-50mm | US / GER / JPN / CHN | |
| N02201 | 0.5-20mm | US / JPN | |
| Titanium | TA1/Gr1 | 0.5-50mm | JPN / CHN |
| TA2/Gr2 | 0.5-50mm | JPN / CHN | |
| Welding Material | ERNiCrMo-13 | 1.2、2.4mm | GER |
| ERNiCrMo-3 | 2.4mm | GER | |
| ERNiCrMo-4 | 2.4mm | US |
Daxun is a trustworthy steel plate manufacturer
As a galvanized plate manufacturer, Daxun ensures that all the products we produce are of high quality. Therefore, we ensure that all galvanized plates are certified by ISO9001, SGS, CE, OQC and more international quality standards. We also conduct strict quality control to ensure that the galvanized plates have less defects.
Related Products (13)
A1: Our galvanized steel plates typically feature a zinc coating thickness ranging from 60g/m² to 275g/m², depending on the specific product grade and customer requirements. This ensures excellent corrosion resistance for various applications.
A2: While stainless steel generally offers superior corrosion resistance, galvanized steel provides excellent protection at a more economical price point. The zinc coating acts as a sacrificial layer, protecting the underlying steel from rust and extending its service life significantly.
A3: Yes, we offer precision cutting services for galvanized steel plates according to your specifications. We can cut plates to dimensions ranging from 1000mm-2000mm in width and 2000mm-6000mm in length, with thickness options from 0.3mm-3.0mm.
A4: For standard products, our typical lead time is 7-15 days depending on order quantity. For custom specifications or large volume orders, please allow 15-30 days for production and delivery.
A5:Yes, all our galvanized steel plates come with comprehensive quality certifications including ISO 9001, SGS, and BV certifications. We also provide mill test certificates to verify the chemical composition and mechanical properties of each batch.
A6: Our galvanized steel plates are widely used in construction, automotive manufacturing, appliance production, HVAC systems, and various industrial applications where corrosion resistance is essential.
A7: Galvanized steel plates should be stored in a dry, well-ventilated area away from direct contact with moisture. They should be kept off the ground using wooden pallets and covered with waterproof material if stored outdoors for extended periods.
A8: Yes, we supply various grades including DX51D, DX52D, DX53D, S280GD, S350GD, and other structural grades to meet different strength and formability requirements for your specific applications.
A9:We can supply galvanized steel plates in widths up to 2000mm and lengths up to 6000mm, with thickness options ranging from 0.3mm to 3.0mm. Custom sizes can be arranged based on your specific project requirements.
