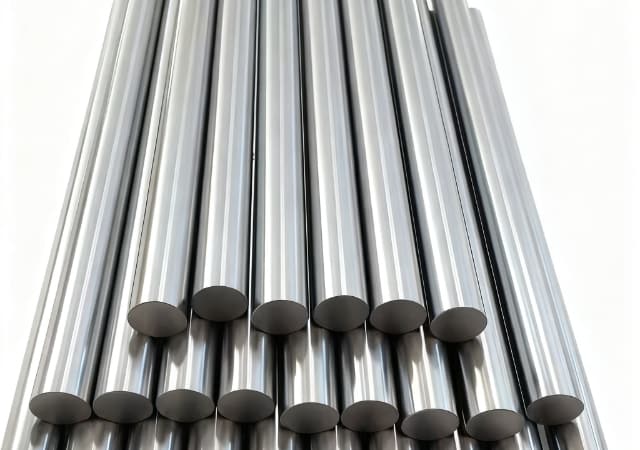

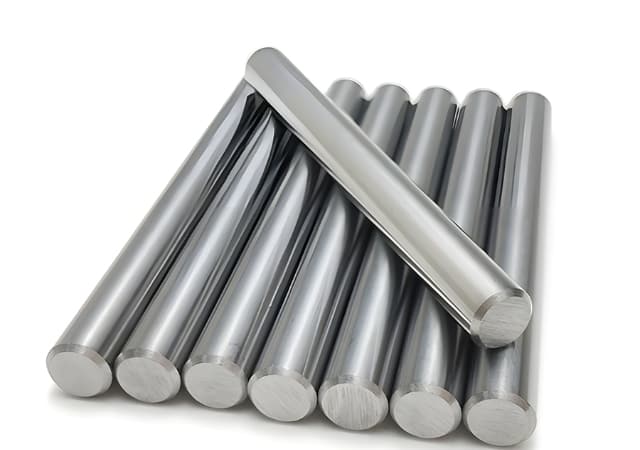

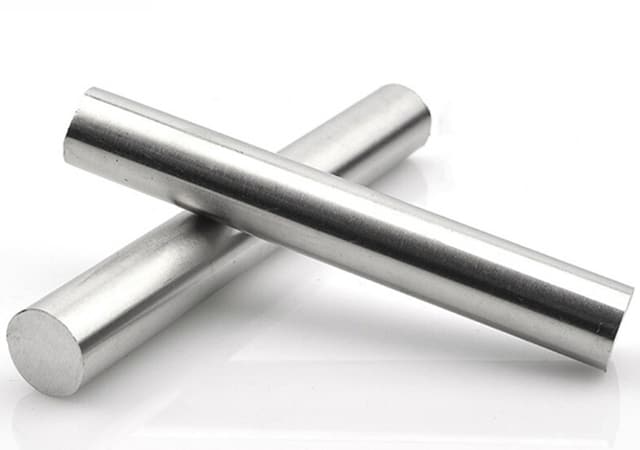

CP Grade 3 Titanium Rod and Bar

Daxun is an excellent manufacturer of CP Grade 3 titanium rods and bars.

Titanium bar grade: R50550 / CP TI50A
Titanium bar types: rolled bars, drawn bars, forged titanium bars
Main standards: ASTM ASME GB GJB EN JIS DIN ISO ATP BS, etc.
High corrosion resistance, excellent weldability, superior strength, lightweight, and outstanding performance in aggressive environments.

The global leader in commercially titanium alloy rod manufacturing services

Daxun, specializing in the production of alloy titanium rods for extreme environments

As the strongest of the CP grades, Grade 3 offers an outstanding combination of high tensile strength, excellent corrosion resistance, and good formability. This makes it an ideal material for demanding industrial applications where both durability and fabricability are paramount.This titanium grade provides superior strength compared to CP Grade 2, making it perfect for components that must withstand higher mechanical stresses. Its exceptional corrosion resistance ensures longevity in harsh environments, including seawater, chlorides, and oxidizing acids. The material features excellent weldability using standard techniques, allowing for easy fabrication and assembly, while maintaining good formability for bending and machining into complex shapes. Despite its strength, it retains titanium’s characteristic lightweight properties, contributing to overall weight reduction in final assemblies.

Common Applications:

CP Grade 3 titanium bar finds extensive use across critical industries. In chemical processing, it’s trusted for heat exchangers, pressure vessels, and piping systems. The aerospace sector relies on it for airframe and jet engine components, fasteners, and brackets. Marine engineering applications include desalination plant components, propeller shafts, and offshore hardware. Power generation facilities utilize it for condenser and heat exchanger tubing, while the medical industry values it for surgical implants and instruments where high strength is essential.

Key Properties & Advantages:

Superior Strength: Significantly stronger than CP Grade 2, making it suitable for components that must withstand higher mechanical stresses.
Exceptional Corrosion Resistance: Highly resistant to corrosion in a wide range of environments, including seawater, chlorides, and oxidizing acids.
Excellent Weldability: Can be readily welded using standard techniques, ensuring ease of fabrication and assembly.
Good Formability: Offers better ductility than many titanium alloys, allowing for bending, forming, and machining into complex shapes.
Lightweight: Retains the characteristic low density of titanium, contributing to overall weight reduction in final assemblies.

Specification	Details
Material	CP Grade 3 Titanium Bar
Standard	ASTM B348, AMS 4921
Dimensions	EN, ASTM, JIS, ASME, BS, AISI, GB, GJB, DIN
Diameter Range	0.125″ – 14″ (3.175mm – 355.6mm), custom
Length Range	Up to 240″ (6096mm), custom
Form	Round Bar, Square Bar, Hexagonal Bar
Surface Finish	Cold drawn, Centerless Ground, Polished, Or Rough Turned, Black, NO.4 Finish, BA Finish, Matt Finish, etc.
Condition	Hardened & tempered, annealed
Tolerance	Diameter tolerance: +/- 0.005″ (0.127mm), length tolerance: +/- 0.125″ (3.175mm)
Form	Titanium square bars, titanium ingots, titanium round bars, rectangular titanium bars, triangular titanium bars, forged titanium bars, titanium hexagonal bars, etc.

Daxun Alloy supply CP Grade 3 titanium bar sourced from premier mills, ensuring every piece meets stringent international standards for quality and consistency. Our material is fully certified and available in a wide range of sizes, with custom cutting services to meet your exact project specifications. Contact our expert team today for a competitive quote and personalized service for your titanium requirements.

Element	Content (%)
Titanium (Ti)	Balance (~99.1%)
Oxygen (O)	0.10 – 0.27
Iron (Fe)	≤ 0.30
Carbon ©	≤ 0.10
Nitrogen (N)	≤ 0.05
Hydrogen (H)	≤ 0.015

Property	Value
Tensile Strength	~450–485 MPa
Yield Strength	~380–415 MPa
Elongation	~20–30%
Hardness (Brinell)	~200–240 HB

Property	Value
Density	~4.51 g/cm³
Melting Point	~1660–1670 °C
Modulus of Elasticity	~103–107 GPa
Thermal Conductivity	~21.9 W/m·K (at 25°C)
Electrical Resistivity	~420 nΩ·m

NOMINAL SIZE	h5	h6	h7	h8	h9	H10	H11	h12
DIAMETER mm	h5	h6	h7	h8	h9	H10	H11	h12
~ to 3	+0.004/0	+0.006/0	+0.01/0	+0.014/0	+0.025/0	+0.04/0	+0.06/0	+0.1/0
over 3 to 6	+0.005/0	+0.008/0	+0.012/0	+0.018/0	+0.03/0	+0.048/0	+0.075/0	+0.12/0
over 6 to 10	+0.006/0	+0.009/0	+0.015/0	+0.022/0	+0.036/0	+0.058/0	+0.09/0	+0.15/0
over 10 to 18	+0.008/0	+0.011/0	+0.018/0	+0.027/0	+0.043/0	+0.07/0	+0.11/0	+0.18/0
over 18 to 30	+0.009/0	+0.013/0	+0.021/0	+0.033/0	+0.052/0	+0.084/0	+0.13/0	+0.21/0
over 30 to 50	+0.011/0	+0.016/0	+0.025/0	+0.039/0	+0.062/0	+0.1/0	+0.16/0	+0.25/0
over 50 to 80	+0.013/0	+0.019/0	+0.03/0	+0.046/0	+0.074/0	+0.12/0	+0.19/0	+0.3/0
over 80 to 120	+0.015/0	+0.022/0	+0.035/0	+0.054/0	+0.087/0	+0.14/0	+0.22/0	+0.35/0
over 120 to 180	+0.018/0	+0.025/0	+0.04/0	+0.063/0	+0.1/0	+0.16/0	+0.25/0	+0.4/0
over 180 to 250	+0.02/0	+0.029/0	+0.046/0	+0.072/0	+0.115/0	+0.185/0	+0.29/0	+0.46/0
